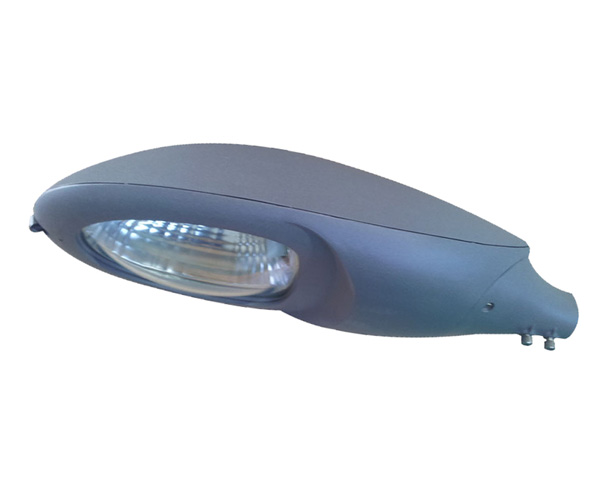

CDM Security Light - Minitown Type

Content

Certified Products

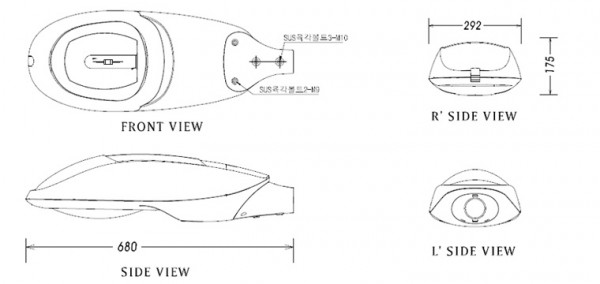

Drawing

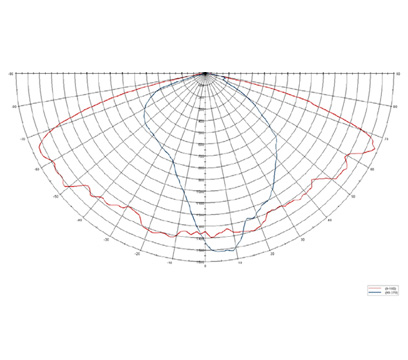

Light distribution chart




Product Specifications

Model CDM70W CDM150W
Dimension(LxWxH)(㎜) 680*292*175
weight(Kg) 4.5
Input Voltage(Vac) 100~240Vac, 50/60㎐
Power Consumption(W) 70 150
Power Factor 0.9 or more
Luminous Flux(lm) 5,600 12,700
Luminance Efficiency(lm/W) 83 83
CRI(Ra) 90
Color Temperature(K) 4,000
IP Code(IP) IP65
